Waterproof Submersible Pump Cable with EPR Insulation and Copper Conductor for 450/750V Applications

Name: Waterproof Submersible Pump Cable with EPR Insulation and Copper Conductor for 450750V Applications
Brand: Minfeng
Price: 0.1 USD

Wholesale Waterproof Submersible Pump Cable with EPR Insulation and Copper Conductor for 450/750V Applications from china suppliers

Brand Name : Minfeng

Model Number : Submersible Cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Insulation Material : EPR

Conductor : Copper

Voltage : 450/750V,300/500V

Minimum Order : 100 M

Port : Shanghai Port

Free Sample : Avaliable

Manufacturer : Minfeng Cable Group

Contact Now

Waterproof JHS/2x2.5 Sqmm Flat/Round Submersible Pump Electrical Cable

Product Overview

Professional submersible pump cable designed for reliable performance in demanding industrial applications. Suitable for various types of submersible motor lead wires from underwater to above-water installations.

Key Specifications

Size 1.5-800mm²/18-10AWG

Conductor Material Copper

Insulation Material Rubber

Jacket Rubber

Application Industrial

Type Low & Medium Voltage

Voltage 450/750V to 18/30KV

Working Temperature -40°C to +90°C

Conductor Flexible Copper

Insulation EPR/NBR

Sheath PCP/CPE

Type Flat or Round

MOQ 100m

Warranty 1 Year

Product Features

Conductor: Class 5 flexible plain copper conductor
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: PCP (Polychloroprene)
Cores: 1, 2, 3, 4, 5 cores or others
Voltage: 450/750V, 300/500V
Temperature Rating: Conductor operation temperature -40°C to +60°C (90°C max)

Applications

This submersible water pump cable is suitable for various types of lead wires for submersible motors (lead from underwater to above-water). The product can be equipped with a waterproof joint and features convenient use with excellent waterproof properties. Even with external damage, it guarantees the motor is protected from water damage, making it a reliable new type of waterproof cable.

Product Images

Waterproof Submersible Pump Cable with EPR Insulation and Copper Conductor for 450/750V Applications

Technical Specifications

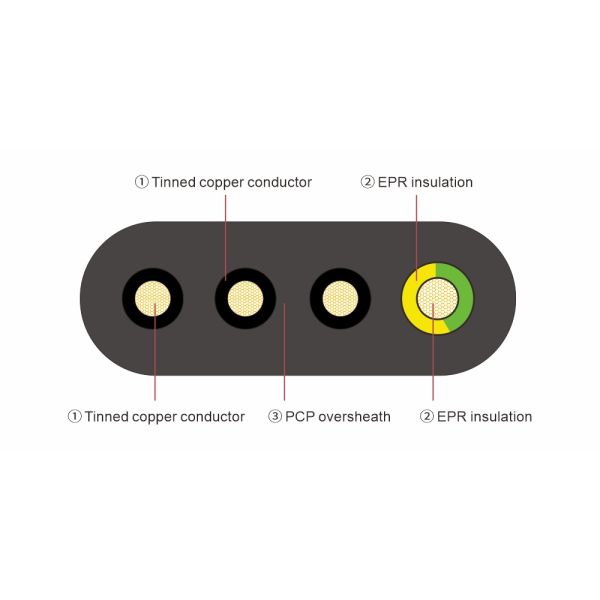

Flat Submersible Water Pump Cables

Conductor Size (AWG)	No of Conductor	Nos of Dia. Of Wire	Ground Conductor Size (AWG)	Core Dia (MM)	Nominal Sheath Thickness (MM)
14	3	41×0.254	14	3.85	1.15
12	3	65×0.254	12	4.5	1.15
10	3	105×0.254	10	5.3	1.15
8	3	168×0.254	10	6.5	1.4
6	3	226×0.254	8	8	2
4	3	420×0.254	8	10.1	2
2	3	665×0.254	6	11.3	2.2
1	3	817×0.254	6	13.6	2.2
1/0	3	1045×0.254	6	15.6	2.2
2/0	3	1330×0.254	6	18	2.2

JHS Round Submersible Water Pump Cable

Conductor Area (Sq. mm)	Nos. & Dia. of Wire	Nominal Core Dia (mm)	Approx. Overall Dimensions 3 Core (mm)	Approx. Overall Dimensions 4 Core (mm)	Current Rating at 40°C (Amps)
1.5	22/0.30	3.25	10	10.8	14
2.5	36/0.30	3.84	11	12.5	18
4	56/0.30	4.5	13	14.1	26
6	84/0.30	5.3	14.6	16	31
10	140/0.30	6.5	18	20.35	42
16	224/0.30	8	21.2	23.4	57
25	350/0.30	10.1	26	28.8	72
35	490/0.30	11.3	28.3	31.5	90
50	703/0.30	13.6	33.5	37.3	115
70	988/0.30	15.3	37.8	42.2	143
95	1349/0.30	18	43.5	48.8	165
