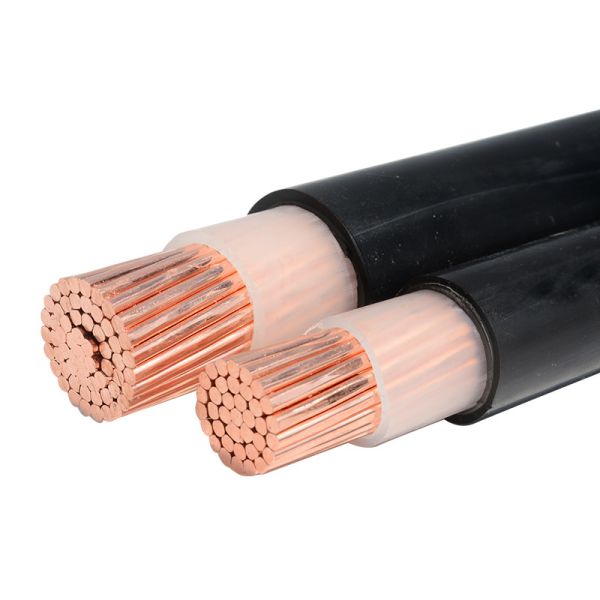

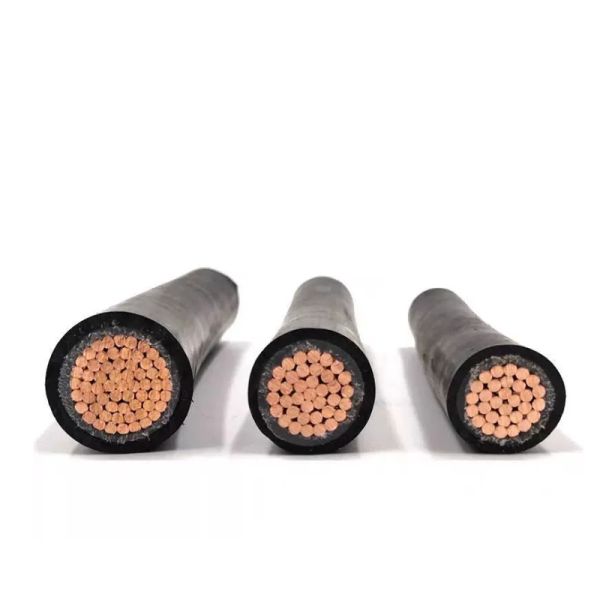

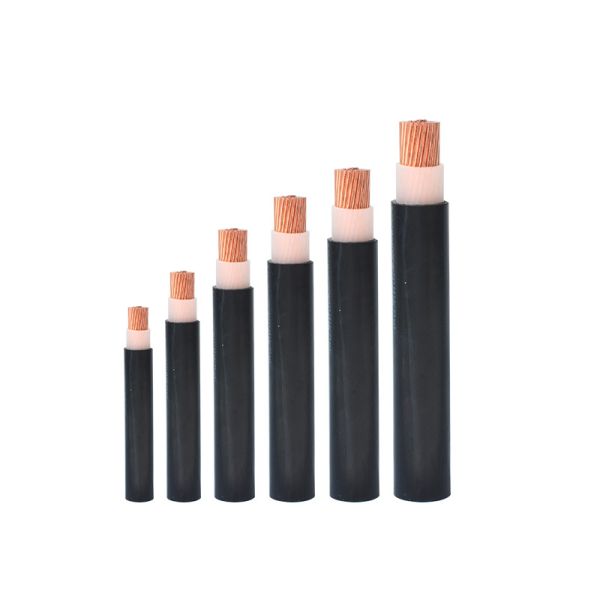

Single Core XLPE Insulated PVC Sheathed Copper Power Cable
Low Voltage 0.6/1kV with LSZH options available in 35, 50, 95, 120, 240, 300 Sq mm sizes

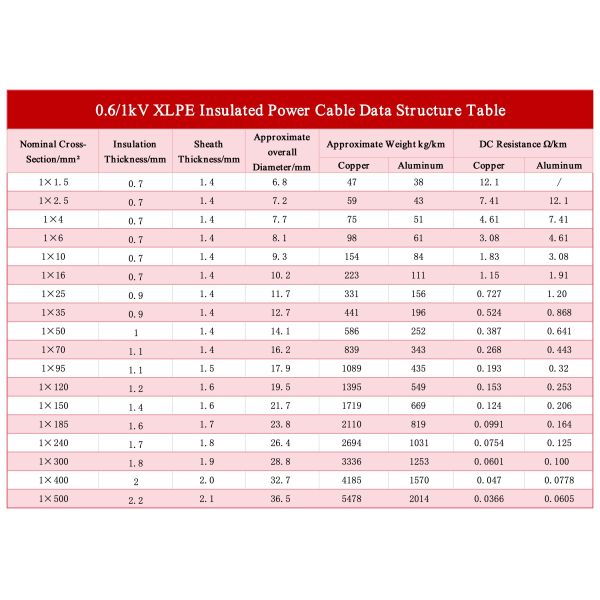

Technical Specifications
| Category |
Specifications |
| Conductor |
Copper (YJV/YJV22/YJL32/YJV42) Aluminum (YJLV/YJLV22/YJLV32/YJLV42) |
| Insulation |
Cross-linked Polyethylene (XLPE) - 90°C rated temperature |
| Voltage Grades |
0.6/1kV, 1.8/3kV, 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV |

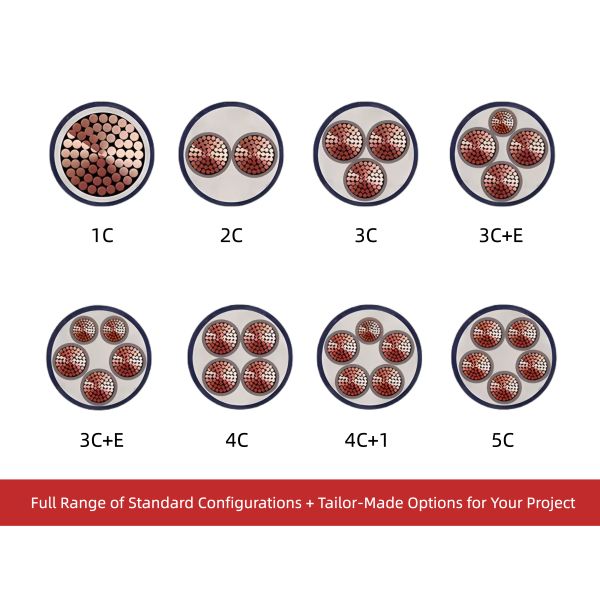

| Core Configuration |
1-5 cores, 3+1, 3+2, 4+1 cores (Customizable) |
| Available Sizes |
1-1000mm² (Full range per IEC 60228) including 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm², 500mm², 630mm², 800mm², 1000mm² |
| Armoring Types |
• Steel Tape (STA) - For crush resistance • Steel Wire (SWA) - For tensile strength |
| Special Types |
Flame-retardant (FR), Fire-resistant (FRLS), Low-smoke Halogen-free (LSZH) |

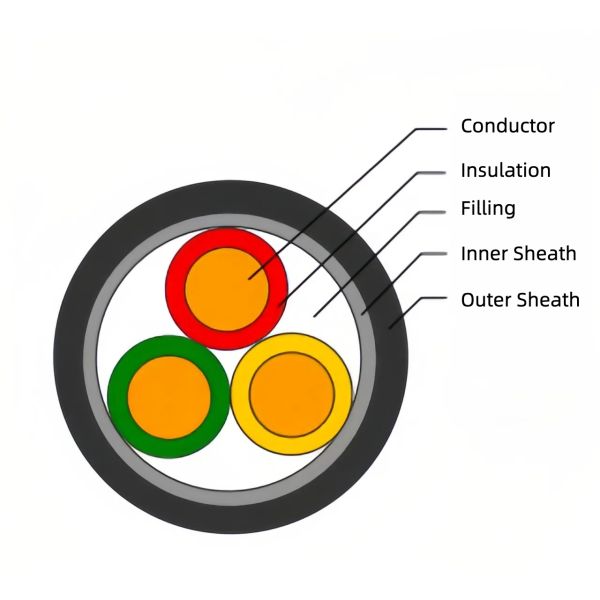

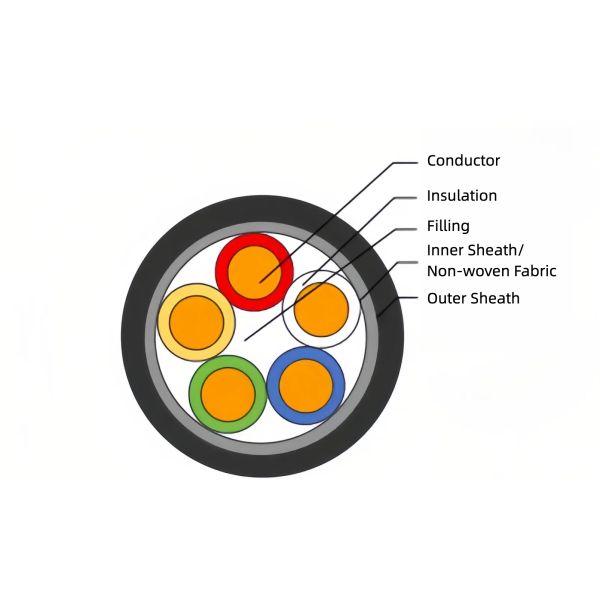

Product Construction
Conductor: Solid or stranded copper/aluminum
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Outer Sheath: Polyvinyl chloride (PVC)
Key Features
XLPE Insulation (Cross-linked polyethylene) - Superior thermal stability (90°C rated)
PVC Outer Sheath - Standard UV-resistant formulation (custom LSZH/Fire-resistant options available)
Dual Certification - Compliant with IEC 60502-1 & GB/T 12706.1
Optional Armoring - Steel tape (YJV22) or wire (YJV32) for mechanical protection
Technical Advantages
Lower Capacitance - Reduced line losses compared to PVC-insulated cables
Faster Installation - 30% lighter weight than armored equivalents
Customization - Available in single-core (YJV) or multi-core (YJV-4C+E) configurations
Applications
Building Power Systems - Main distribution panels, riser cables
Industrial Plants - Motor feeders, production line power supply
Renewable Energy - Solar inverter connections, wind turbine internal wiring
Commercial Complexes - Shopping malls, hospitals, hotels (LSZH variant recommended)
Temporary Installations - Construction site power due to flexibility
Packaging & Logistics
Packaging: Wooden drums (Max. 3,000m/drum), moisture-proof wrapped
MOQ: 1,000 meters (Custom lengths accepted)
Lead Time: 25-35 days (Stock options for common sizes)
