400kv XLPE Insulated Steel Wire Armoured Cable High Voltage Underground Power Cable

Brand Name : Minfeng

Model Number : armored cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Productname : Armoured Cable

Standard : AISI, ASTM, BS, DIN, GB, JIS

Cabletype : Armoured

Sheathmaterial : PVC or PE

Cablesize : Varies from 1.5mm² to 1000mm²

Conductormaterial : Copper or Aluminum

Flameretardant : Yes/No

Insulationmaterial : PVC, XLPE, or Rubber

Contact Now

High Voltage Energy Meter 400kV 132kV 110kV XLPE Insulated Armoured Underground Power Cable
Power cables are essential components used to transmit and distribute electrical energy across various applications including urban underground power grids, power station outgoing lines, industrial power supply systems, and underwater transmission lines.

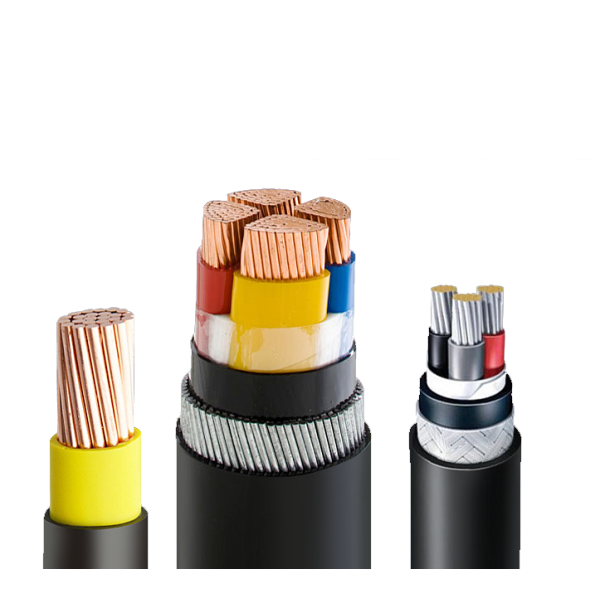

400kv XLPE Insulated Steel Wire Armoured Cable High Voltage Underground Power Cable
YJV cables serve as the backbone cables in power transmission infrastructure, typically installed in urban underground passages or buried directly underground. These cables are critical for maintaining reliable power distribution networks.
Product Specifications
Conductor Material Copper, Aluminum
Insulation Material XLPE, PE, PVC
Jacket PE, PVC
Application Underground
Type High Voltage
Place of Origin Hebei, China
Model Number underground electric cable
Brand Name Minfeng
Product Name 3 phase 4 core armoured cable
Certificate ISO9001-2008, ISO14001-2004, CCC
Standard BS, IEC, ASTM, DIN
Jacket Color Black, white, red, yellow, brown, green, blue or custom colors
Armored Options Thick or thin steel wire, steel tape, aluminum wire, copper tape
Rated Voltage 400kV, 132kV
Detailed Cable Specifications
400kv XLPE Insulated Steel Wire Armoured Cable High Voltage Underground Power Cable
Brand RMjT
Product Name YJV (YJLV), Copper (aluminum) core XLPE insulated PVC sheathed power cable
Rated Voltage 0.6/1KV 6/10KV; 8.7/15KV; 12/20KV; 18/20KV; 21/35KV; 6/35KV
Voltage Level Low voltage cable, Medium voltage cable, High voltage cable, Ultra high voltage cable
Common Sizes 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², etc.
Number of Cores Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores, etc.
Material Composition Copper (aluminum) conductor, polyethylene insulator, filler (nylon, PVC composite material, etc.), polyvinyl chloride outer sheath
Standard GB/T12706.1-2008, IEC60502-1-1997
Types of YJV (YJLV) Ordinary type, flame-retardant type, fire-resistant type, low-smoke halogen-free type
Armoured Options Steel tape armored, steel wire armored
Application Power distribution engineering, power transmission engineering, electromechanical and hydropower installation engineering, power transmission, power supply installation system, control system, etc.
Application Instructions
  • Rated voltages: 0.6/1kV
  • Ambient temperature for cable installation: ≥0℃
  • Maximum conductor temperature in normal operation: ≤90℃
  • Maximum operating temperature of conductor when cable short-circuited (5s maximum duration): ≤250℃
Armored Cable Characteristics
Withstand external tension: 33 > 32 > 23 > 22
400kv XLPE Insulated Steel Wire Armoured Cable High Voltage Underground Power Cable
Steel Tape Armor
Indoors, in tunnels, cable trenches or buried in places that need to withstand a certain radial mechanical external force
400kv XLPE Insulated Steel Wire Armoured Cable High Voltage Underground Power Cable
Steel Wire Armor
Indoors, tunnels, cable trenches, shafts or buried laying, etc. can withstand a certain tension
400kv XLPE Insulated Steel Wire Armoured Cable High Voltage Underground Power Cable 400kv XLPE Insulated Steel Wire Armoured Cable High Voltage Underground Power Cable 400kv XLPE Insulated Steel Wire Armoured Cable High Voltage Underground Power Cable
